Product Overview
MODEL5100 point-type flammable gas detector for industrial and commercial use adopts Pd alloy thin-film hydrogen detection technology. This technology features absolute hydrogen specificity with no cross-response to other flammable gases. Meanwhile, the sensor chip combines a Pd alloy-oxide semiconductor field-effect transistor (MOSFET) structure and a Pd alloy thin-film resistor structure, and adopts high-sensitivity Pd alloy doping & thin-film preparation technology, and specific composite thin-film preparation technology. These enable the MODEL5100 sensor to have a low detection limit, fast response time, and excellent long-term stability.

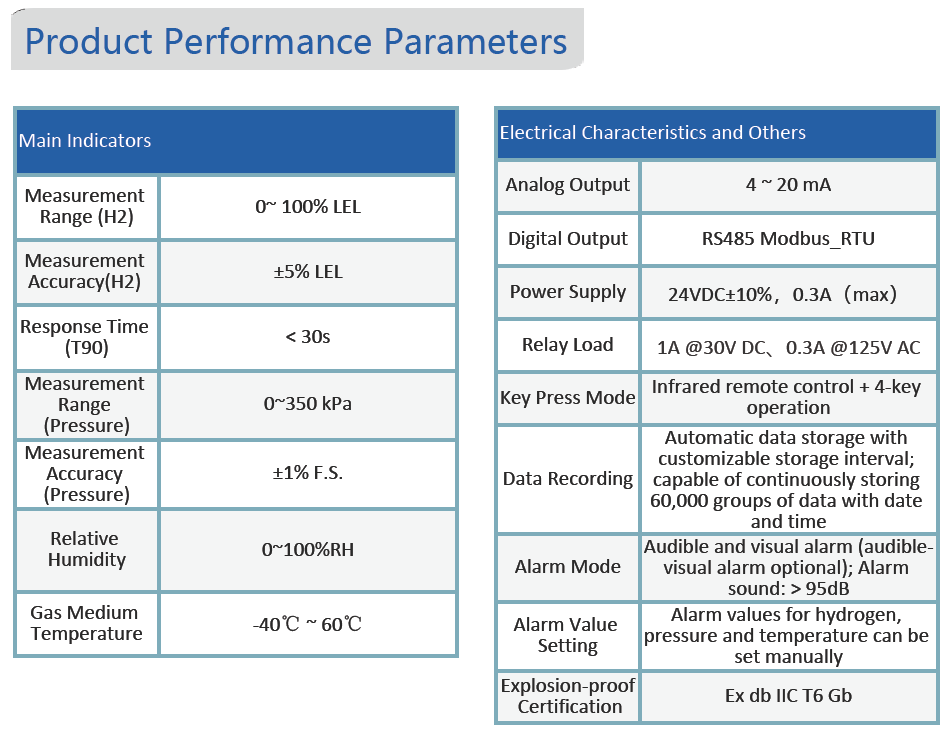

MODEL5100 product has obtained explosion-proof certification and is equipped with a pressure compensation function. Its outputs include 4-20mA analog signals, RS485 digital signals, and relay outputs. Additionally, it is fitted with an on-site high-definition color display and an infrared remote control, with an optional audible and visual alarm. It is mainly used in industries and fields such as hydrogen production, hydrogen storage, hydrogen transportation, hydrogen fuel cells, lithium battery energy storage, gas leakage, chemical industry, and chemical laboratories—specifically in hydrogen leakage locations that require long-term monitoring.
