Product Overview
MODEL 5000C Split-Type Hydrogen Transmitter adopts H2SENSETM Pd alloy thin-film hydrogen sensor based on our company’s core process technology. It represents a true hydrogen-specific technology, where hydrogen detection is not affected by combustible gases such as CO and CₓHᵧ.
The sensor chip of MODEL 5000C is based on a structure of Pd alloy thin-film resistor. It adopts key process technologies, such as a mature and stable Pd alloy material doping system, alloy thin-film preparation process, and specific composite thin-film preparation technology. These technologies give the hydrogen sensor superior long-term stability, allowing it to be free from periodic maintenance.

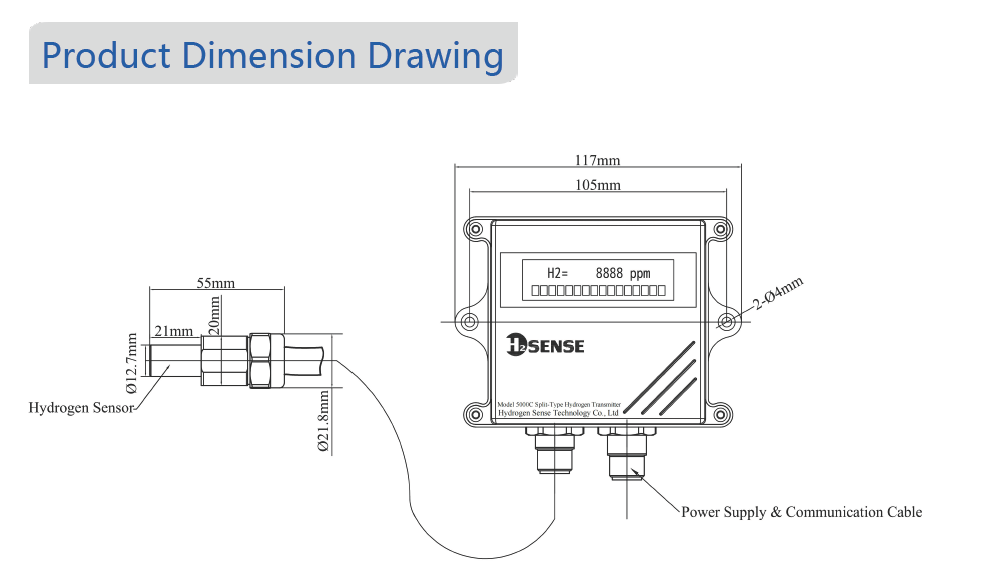

The probe of MODEL5000C split-type hydrogen transmitter achieves miniaturization and quick installation, making it suitable for working conditions with limited installation space. The hydrogen detection probe is electrically connected to the backend signal conditioning circuit via a shielded cable (with a customizable length ranging from 5 to 100 meters). This type of sensor is equipped with a local display function for hydrogen concentration, which is convenient for users.
